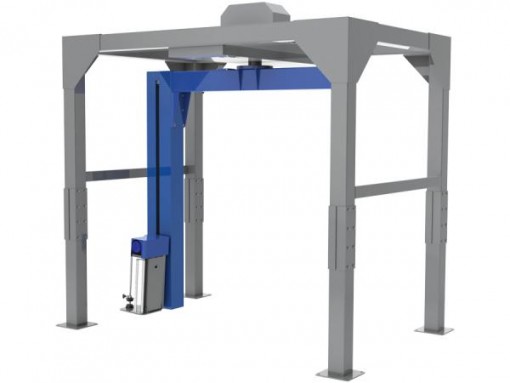

2300A Rotary Arm Pallet

The 2300A rotary arm pallet of Witt has no limit regarding the loading capacity. The pallet is in fact simply placed on the floor. Another advantage is that the pallet is not running, thus less stable pallets can also be complicated. This pallet is delivered with a braked foil car wrapping foil or wrapping net. Optionally, a film carriage can be placed which stretches for your film by 250%. The machine is very robust.

Where this pallet wrapping machine is used?

This pallet is mainly used by companies:

have unstable pallets
pallets are weighing more than 2000kg.

Enquire About This Product

Specifications 2300A Rotary Arm Pallet

Turntable

Arm diameter: 1800 mm, driven sprocket
Maximum Load: NA
Speed adjustable: yes, adjustable
Exact position stop: yes
Max. pallet dimensions: 1200 mm x 1200 mm

Film Trailer

Standard wrapping height: 2400 mm
Automatic height detection: yes
Speed adjustable: yes, adjustable
Film: 17 to 35 uM, standard machinerol
Brake: Yes, mechanical
Voorrekker: optional, 250% pre-stretch

Remainder

Automatic cut and fixed sealing: No
Remote control: no
Electrical connection: 230V / 1 ~ N / 50Hz / 1,47kW
Protection: IP54
Operating temperature: +5 to +45 ° C
